HY310x

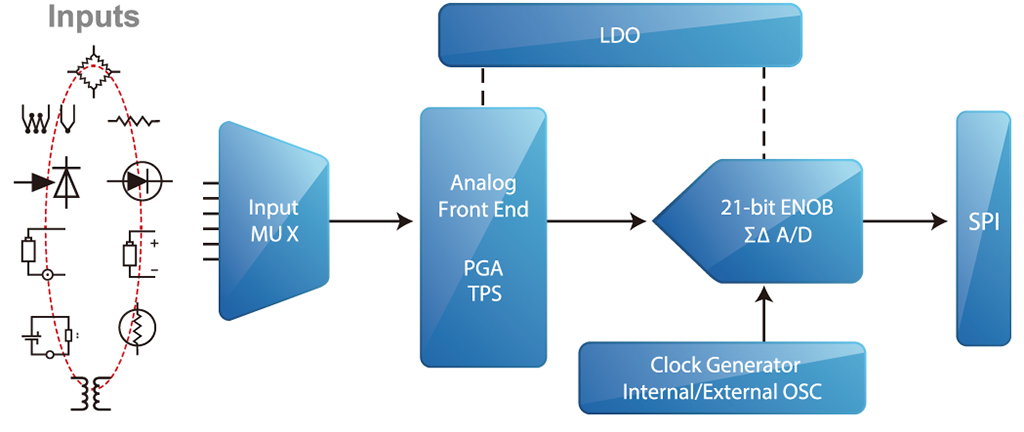

Product Features
  • Operation voltage: 2.4V to 3.6V
  • Temperature range: -40℃ to +85℃
  • Built-in VDDA regulator, 2.4V, 2.7V, 3.0V and 3.3V voltage selection
  • External/internal clock source
  • SPI interface
  • Built-in temperature sensor with ±2℃ accuracy
  • 16-pin SSOP
  • Up to 4 analog channels
  • Built-in DC offset input
  • 24-bit fully differential ΣΔ analog-to-digital converter (ADC)
    • Lowest RMS noise level: 50nV
    • Output rate, 10, 80, 640 and 2560SPS selection
    • 50/60Hz signal rejection
    • Reference input buffer
  • Operation current:
    • 950μA @ gain=64, 128
    • 300μA @ gain=1, 2 or 4
  • Built-in PGA, x1, x2, x4…x128 gain amplification
HY310x Series
Model No. VDD Internal
Clock
System
Clock
ADC
ENOB
ADC
Gain
PGA
Gain
Sample
Rate
RMS Noise TPS External
Crystal
Serial
Interface
Package
HY3102 2.4V~
3.6V
320KHZ 320KHZ 21-bit x2 1~4 8~32 10sps~
2560sps
50nV (10SPS) Y SPI SSOP 16
HY3106 2.4V~
3.6V
320KHZ 320KHZ~
4.9152MHZ
21-bit x4 1~4 8~32 10sps~
2560sps
50nV (10SPS) Y 4.9152MHZ SPI SSOP 16





Tool description and software download area
Document Description Software Revision Information Hardware User Manual Training Videos
HY3106-AK01 HY310 ΣΔADC Performance Test Tool Download Download
